BANANA PI compatible with Raspberry PI,with gigabit ethernet port and sata port







product-description

Banana PI M1 is the open source hardware platform which published to assistant the
Elastos.org open source OS, Banana PI M1 is the dual core Android 4.2 product which more
better than the Raspberry Pi.
Banana Pi M1 series run Android,Debian linux,Ubuntu linux, Raspberry Pi imange and
cubieboard imange.
Elastos coordinate multi CUP to from the family cloud entirnment which based on the
“software/hardware service”

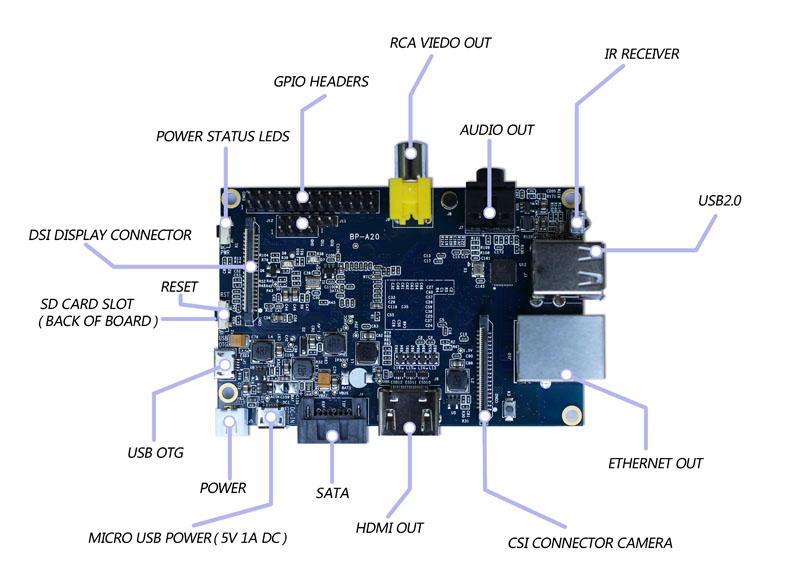

banana pi connecting
With Banana Pi, you can build:
A computer
A wireless server
Games
Music and sounds
HD video
A speaker
Android
Scratch
……
Pretty much anything else, because Banana Pi is open source.


hardware-specification

  SOC

  Allwinner A20

  CPU

  A20 ARM Cortex™-A7 Dual-Core

  GPU

  ARM Mali400MP2Complies with OpenGL ES 2.0/1.1

  Memory(SDRAM)

  1GB DDR3 (shared with GPU)

  Onboard Storage

  SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk

  Onboard Network

  10/100/1000 Ethernet RJ45,optional WIFI

  Video Input

  A CSI input connector allows for the connection of a designed camera module

  Video Outputs

  HDMI, CVBS , LVDS/RGB

  Audio Output

  3.5 mm Jack and HDMI

  Power Source

  5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG)

  USB 2.0 Ports

  2 (direct from Allwinner A20 chip)

  Buttons

  Reset button: Next to MicroUSB connector

  Power button: Next to Reset button

  Boot button (Optional): Behind HDMI connector

  GPIO(2X13) Pin

  GPIO,UART,I2C bus,SPI bus with two chip selects,

  CAN bus,ADC,PWM,+3.3v,+5v,ground.

  LED

  Power Status LED (Red)

  Ethernet Status LED (Blue)

  User Define LED (Green)

  Remote

  IR (Optional)

  OS

android 4.2android-4.2-jelly-bean -74x74debianubanturaspberry pi

  Android          Android 4.2           Cubieboard            Ubuntu         Raspberry Pi

  Product Size

  92 mm * 60 mm

  Weight

  48 g


Screen Show
Android system screen Ubuntu system screen
android-screen ubantu-screen

Cubieboard system screen

Raspberry Pi
debian-screen raspberry-pi-screen


compare-table

    BananaPi   RaspBerry   CubieBoard   Olimex   Arduino   BeagleBone
  Size 8.56cm×5.60cm 8.56cm×5.4cm 10cm×6cm 8.4cm×6.0cm 7.5cm×5.33cm 8.64cm×5.33cm
  Processor  ARM Cortex-A7 Dual-Core ARM11Series Cortex A8 Cortex A8 ATMega 328 ARM Cortex-A8
  ClockSpeed   1GHz 700MHZ 1GHZ 1GHz 16MHZ 700MHz
  RAM 1G DDR3 256MB 512MB/1GB  512MB 2KB 256MB
  Flash Up to 64GB on SD slot,
up to 2T on 2.5 SATA disk
SD / MMC / SDIO
card slot
4GB Nand 4GB 32KB 4GB(microSD)
  Eeprom       2KB 1KB
  Input   Volvage   5V 5V 5V 5V 7-12V 5V
  Min Power   N/A 700mA(3.5W) N/A N/A 42mA(3W) 170mA(.85W)
  Digital GPIO 26 8 96 68/74 14 66
  Analog Input   N/A N/A N/A N/A 6 10-bit 7 12-bit
  PWM 1       6 8
  TWI/I2C 1 1 1 3 2 2
  SPI 1 1 1 1 1 1
  UART 1 1 1 2 1 5
  Dev IDE Android,Firefox OS,
Linux etc.
Debian GNU/Linux,
Fedora, Arch Linux
N/A N/A Arduino Tool  Python,Scratch,
Squeak,Cloud9/Linux
  Ethernet 10/100/1000 10/100 10/100 10/100 N/A 10/100
  USB Master   2 USB 2.0, 1 micro USB 2 USB 2.0 2 USB 2.O  1 min USB 2.0 2 USB 2.0 N/A 1 USB 2.0
  Video Out   CVBS and HDMI,
RGB/LVDS
HDMI,Composite HDMI HDMI N/A N/A
  Audio Output   3.5 mm jack 3.5 mm jack N/A N/A N/A Analog


use-method

1. Download the relevant Image file
2. Make your card
2.1 Format the SD card
2.2 Unzip the download file to get the OS image
2.3 Write the image file to the SD card
3. Insert the made SD start card
4. Connect with the display screen
5. Connect with the USB power wire
6. Open the system
7. GPIO define



accessoirer line
